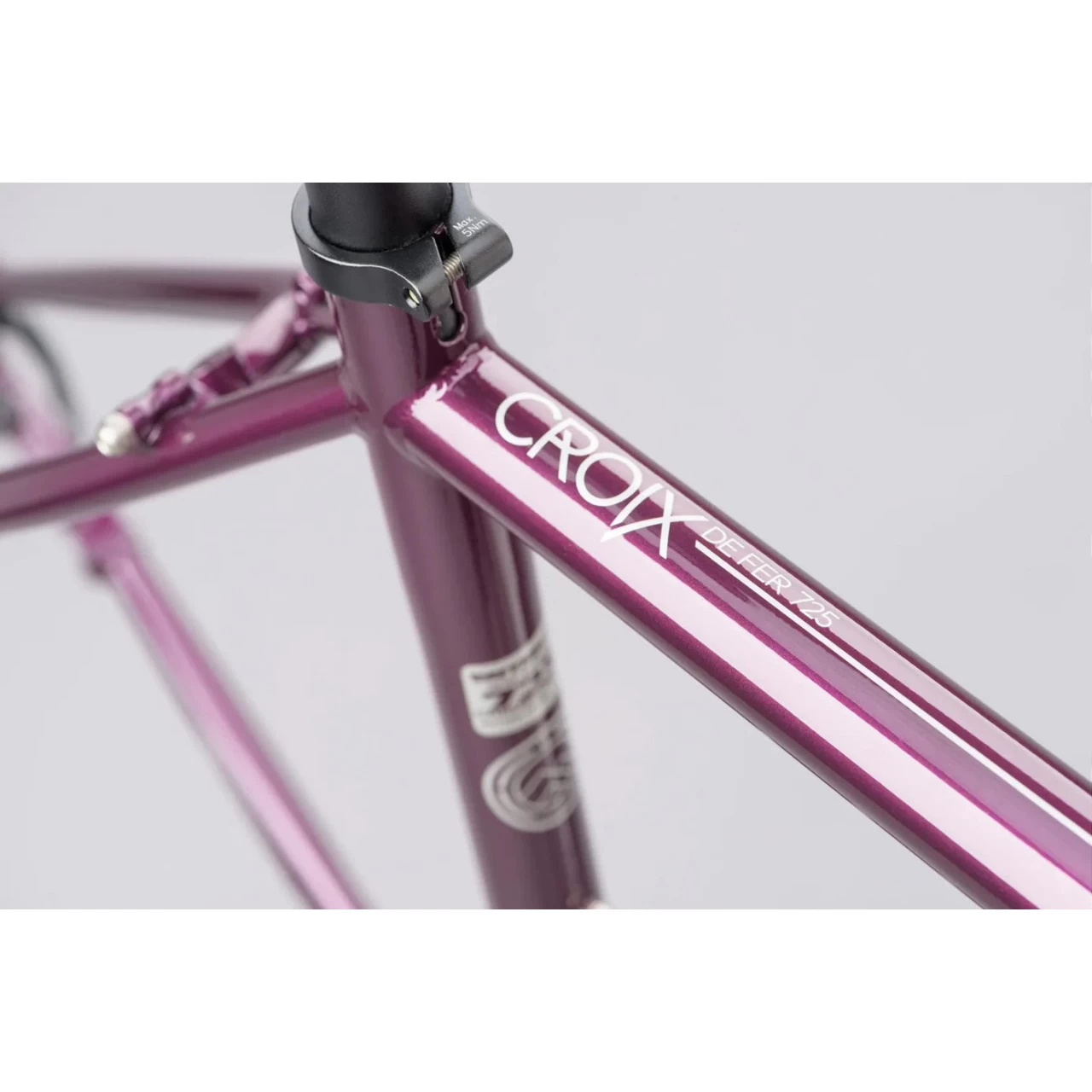

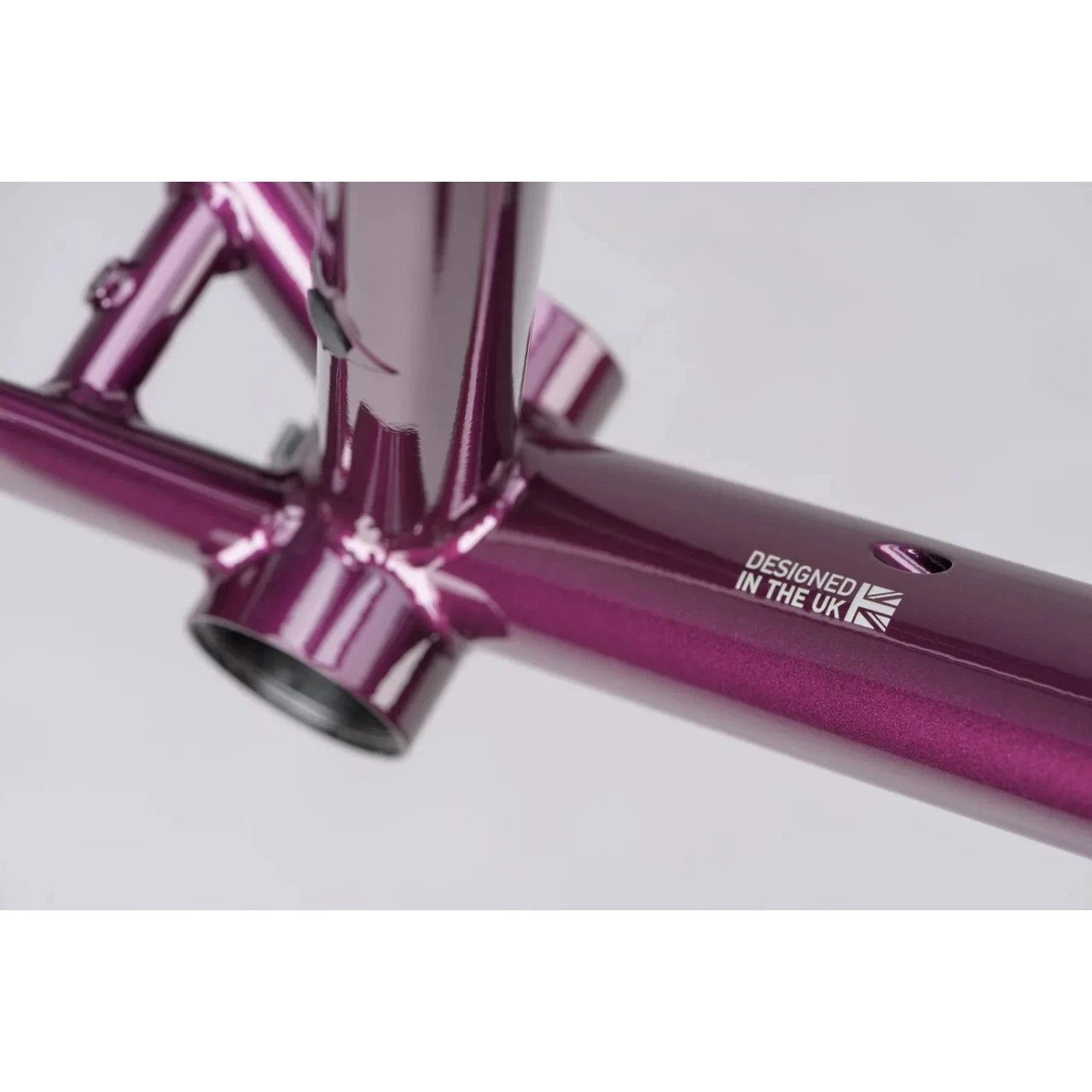

A thoroughly modern Croix de Fer, built ready for the next decade. Built entirely from 725 tubing, Reynolds mandrel butt and heat-treat this alloy so that thinner walls can be used compared to non-heat-treated steels. This makes it our ultimate workhorse, delivering a refined ride quality and for a modest weight penalty, keeps the pricing keen. Completely modernised, the 725 frameset adds 12mm thru-axles for compatibility with the latest wheelsets. The ability to run up to a 45mm rear tyre and a 50mm front tyre on 700c rims increase the all-terrain ability of the Croix – and it doesn’t end there. If you want to experiment with 650B wheels, you could run up to a 44mm rear tyre and a 50mm front tyre. Flat mounts for disc brakes, internal rear brake hose routing, a third bottle mount, rack and guard mounts and fixings for Anything Cages on the forks complete the package. Whether you’re spending the money you’ve saved on a fancier wheelset, or a long weekend away on the bike, the Croix de Fer has got you covered.
- Frame Reynolds 725 Heat-Treated Chromoly 12mm Thru-Rear-Axle
- Fork Chromoly Disc Fork With Anything Cage Mounts With 12mm Thru-Axle
- Headset PT-1767D EC34 Upper / EC34 Lower Hanger GNSPR40002
- Weight 3.98kg
- Frame Weight Limit No Weight Limit
- Fork Steerer Size 1 1/8”;
- Wheel Size Options 700c, 650b
- Max Tyre Clearance 650B rear 44c/ front 50c 700c rear 45c/ front 50c
- Hub Size/Spacing Front 100mm x 12mm,
- Rear 142mm x 12mm
- Brake Mount Type Flat Mount 140
- Front Mech Size/Compatibility Band On 28.6mm
- Max Chainring Size 50/34, 42t
- Seat Tube/Clamp Size 27.2mm/ 29.8mm
- Mech Hanger Type & Part Code Replaceable – GNSPR40002
- Colour Depeche Mauve
- Colour Code Pantone 518 C
- MOUNTS Mudguard Mounts Yes Rack Mounts Yes Bottle Cage Mounts Yes Additonal Mounts Anything Cage Mounts
|

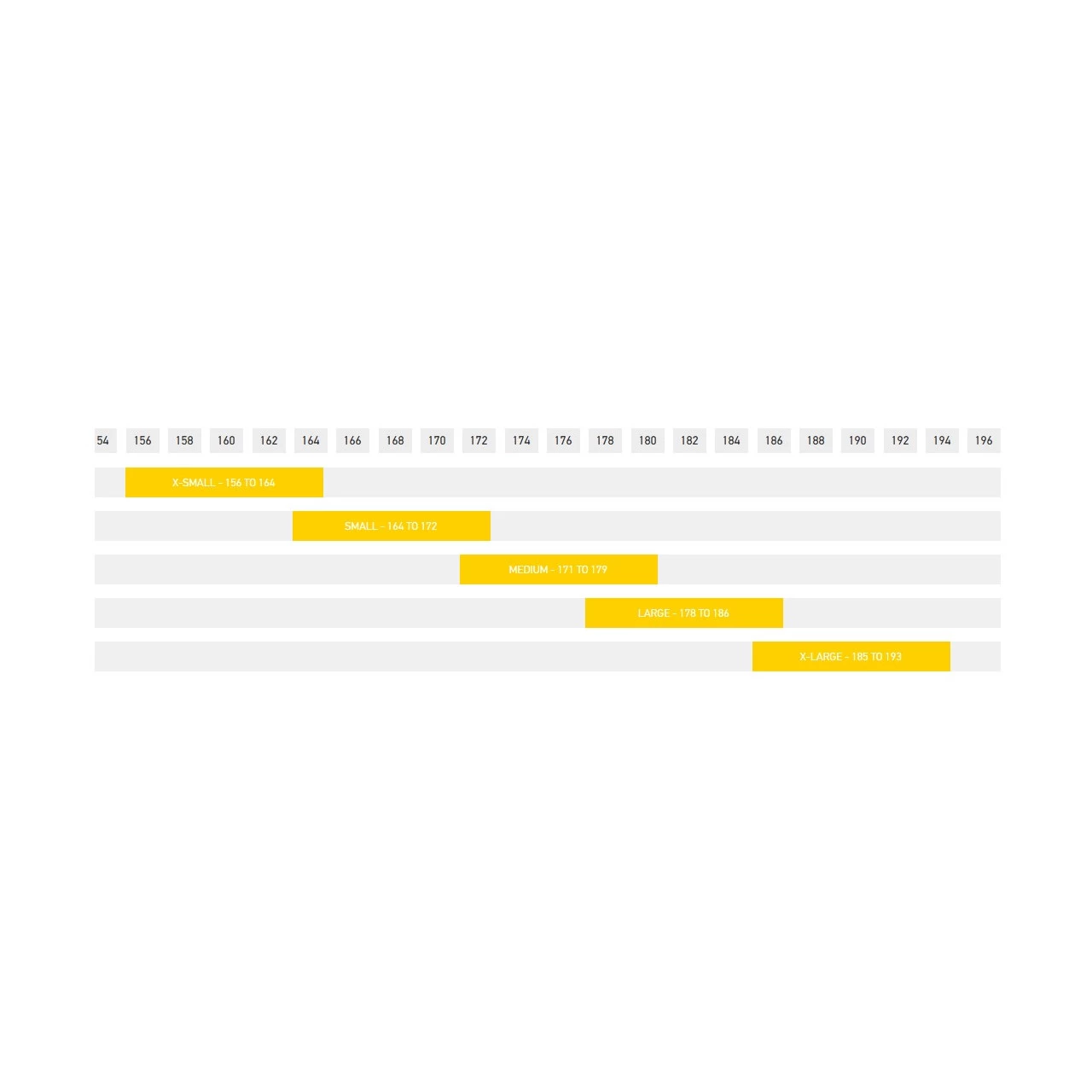

XS |
S |
M |
L |
XL |
|
| Sitzrohr (Mitte-Mitte) / Seat Tube (C-C) | 470 | 500 | 530 | 550 | 580 |
| Oberrohrlänge / Top tube | 524 | 544 | 561 | 582 | 605 |
| Steurohrlänge / Head Tube Length | 115 | 135 | 155 | 175 | 195 |
| Sitzrohrwinkel (°) / Seat Angle | 74° | 73,5° | 73,5° | 73° | 72,5° |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Steurohrwinkel (°) / Head Angle | 71° | 71° | 71,5° | 71,5° | 72° |
| Kettenstrebenlänge / Chainstay Length | 430 | 430 | 430 | 430 | 430 |
| Radstand / Wheelbase | 1007 | 1023 | 1035 | 1052 | 1063 |
| Gabelvorbiegung / Fork Rake | 50 | 50 | 50 | 50 | 50 |
| Überstandshöhe / Standover | 761 | 784 | 808 | 826 | 850 |
| Stack | 553 | 572 | 592 | 612 | 633 |
| Reach | 365 | 375 | 385 | 395 | 405 |
| Lenkerbreite / Handlebar width | |||||
| Vorbaulänge / Stem length | |||||
| Kurbellänge / crank length |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
