Surly – Disc Trucker Frameset Hi-Viz Black – 700c

Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.

That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.

• Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more

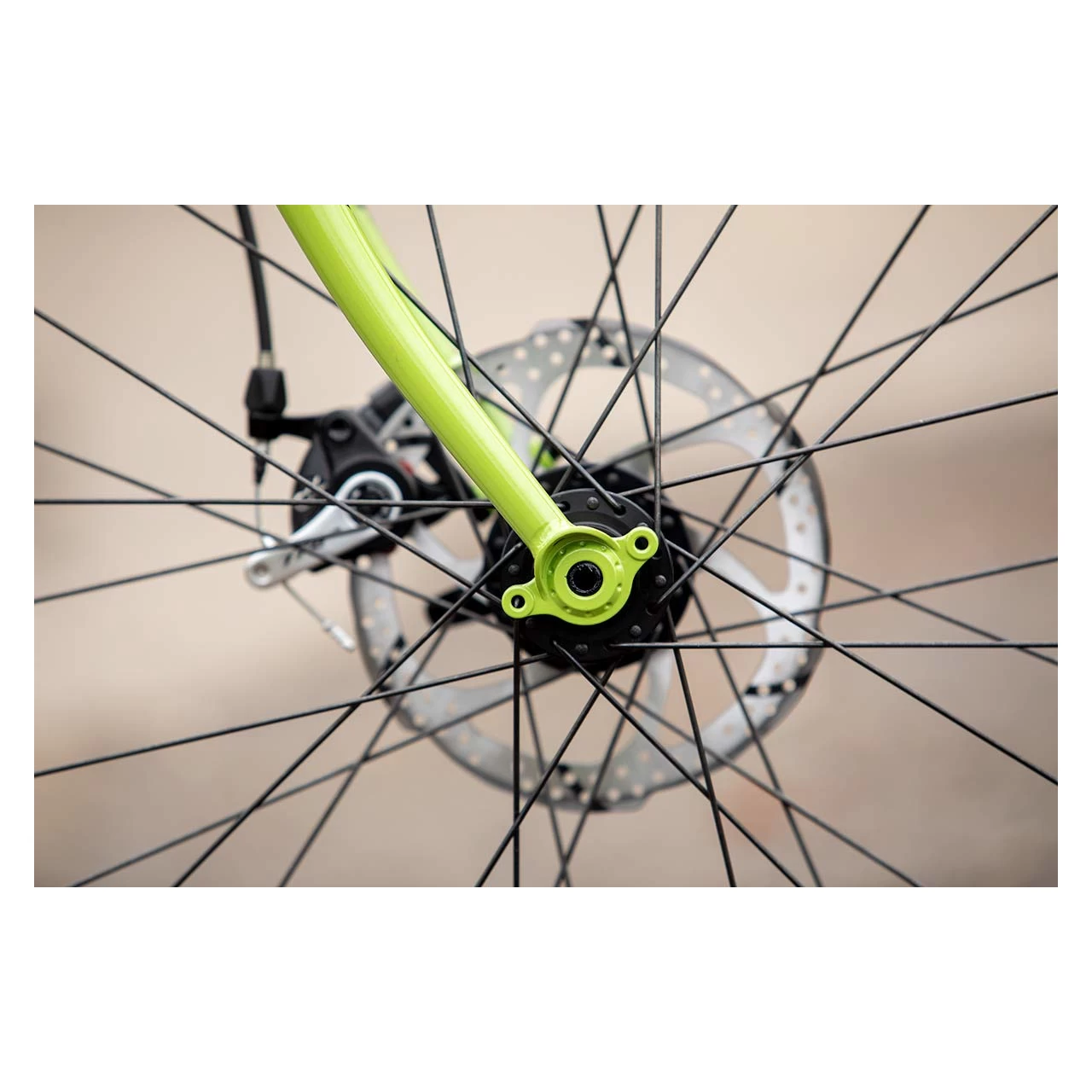

• 12mm thru-axles for a stiffer feel and increased stability when fully loaded
• Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
• Flat-mount disc brakes
• Frame sizes 56–64cm are available with 700c diameter wheels
• Clearance 700c x 47mm with or without fenders

Specs:

• Frame Surly Long Haul Trucker, 100% Surly 4130 CroMoly steel. Surly Long Haul Trucker, 100% Surly 4130 CroMoly steel. Main triangle double-butted. TIG-welded
• Fork: Surly Long Haul Trucker, 4130 CroMoly, lugged and brazed. Proprietary sloping crown with threaded eyelets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets
• Rear Hub Spacing 12×142 (Axle included)
• Rear Axle Size Ø12 x 162, TP=1.5, TL=12
• Front Hub Spacing 12×100 (Axle included)
• Front Axle Size Ø12 x 118.5, TP=1.5, TL=12
• Rear Brake Disc – Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
• Front Brake Disc – Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
• Head Tube Ø34mm Steerer Tube Ø28.6mm (1-1/8″)
• Crown Race Ø30mm (1-1/8″)
• Stock Headset Upper (S.H.I.S.) EC34/28.6
• Stock Headset Lower (S.H.I.S.) EC34/30
• Seat Collar Ø30mm
• Seatpost Ø27.2mm
• Front Derailleur (Clamp) Bottom-pull (Ø28.6mm)
• Max Chainring (CL)[3] 1x (Road): 47T 2x (Road): 34/50T 3x (Road): 33/47/56T
• Bottom Bracket 68mm threaded (1.37″ x 24TPI)
• Tire Clearance Frame [1]/[2] 26in: 26 x 2.1″ (with or without fenders) 700c: 700c x 47mm (with or without fenders)
• Tire Clearance Fork [1] 26in: 26 x 2.0″ (with or without fenders) 700c: 700c x 50mm (with or without fenders) 700c: 29 x 2.0″ (with or without fenders)
• Bottle Mounts Frame 3 Standard
• Bottle Mounts Fork 2 Three-Pack
• Rack Mounts Frame Yes (upper and lower threaded)
• Rack Mounts Fork Yes (upper, lower, and mid-blade threaded)
• Fender Mounts Frame Yes
• Fender Mounts Fork Yes
• Other Features Seatstay mounted spoke holder Downtube mounted shifter bosses Surly removable kickstand plate included with complete bikes Uses rear flat mount standard for front brake

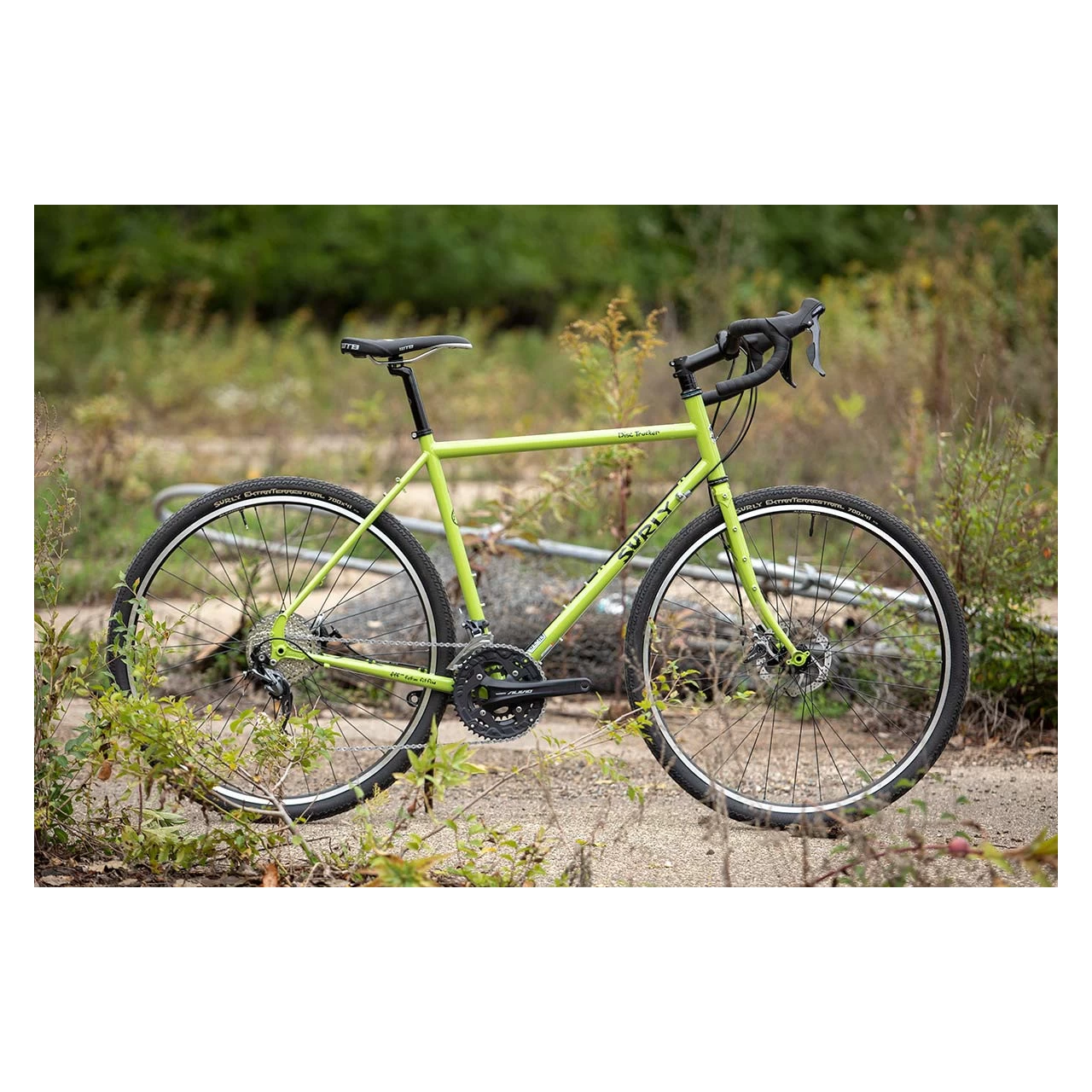

Just Frame + Fork. The pictures of the complete bike are just for showing purpose!
